Automation in Brief

Automation keeps production going whatever the time of day or day of the week. The result is shorter lead times, higher productivity and quicker payback of capital invested in machines.

Boost your competitiveness!

Competition in the manufacturing industry is extremely keen. Global competition must be met with increased flexibility, higher quality and better productivity. In the long term there's only one viable solution - palletisation and automation.

Automation keeps production going whatever the time of day or day of the week. The result is shorter lead times, higher productivity and quicker payback of capital invested in machines.

An automatic production cell is an effective means of competition for long runs, short runs and even for one-off manufacturing. With automated operation, production can continue running round the clock, seven days a week. The possibilities are endless.

Transfomer

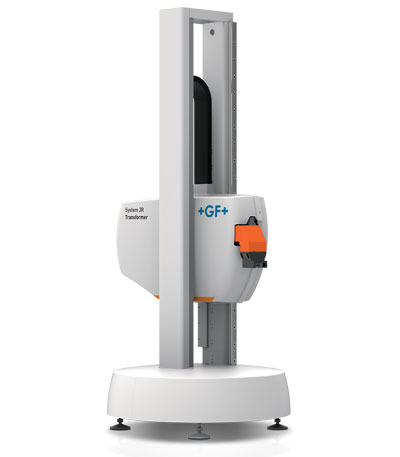

Transformer is a flexible modular automation system consisting of a changing unit which changes large and small pallets between the magazines and up to four machines in the same production cell.

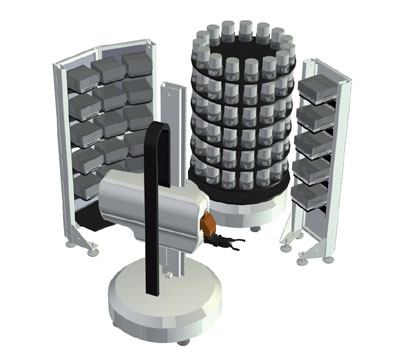

Several designs of magazine are available. The basic variants are modular racks or rotating magazines, where the shelves are matched to the pallet systems in System 3R's wide range of products.

Typical fields of application are :

  • milling - changing of workpiece and cutting tool
  • grinding - changing of workpieces
  • die-sinking EDM - changing of workpieces and electrodes
  • wire EDM - changing of workpieces

Technical specification

  • Transfer weight - pallet with workpiece 75 kg or 150 kg, electrodes 10 kg
  • X-, Z- and C-axes - AC servomotor
  • Max stroke, X-axis, 1250 mm
  • Stroke, Z-axis - 1400 mm
  • Rotation, C-axis, 300 degrees
  • Power supply required: three-phase 400 V AC, 3.5 kVA
  • Air pressure required - 6±1 bar, 150 l/min
  • Interface - serial R232/422, M-function or parallel I/O
