High Speed Machine (HSM)
GF Machining Solutions’ range of high-speed milling centers — engineered and built in Switzerland — boast the essential structural design, high-speed spindles, high feed rates, axis mechanism and best-in-class acceleration for machining complex three-dimensional surfaces across a wide range of applications.
High speed milling centers are 10 times faster than conventional milling machines in terms of cutting speed. Greater accuracy and a better surface finish are also achieved. This means that even tempered materials can be machined to a condition where they are largely ready to use.

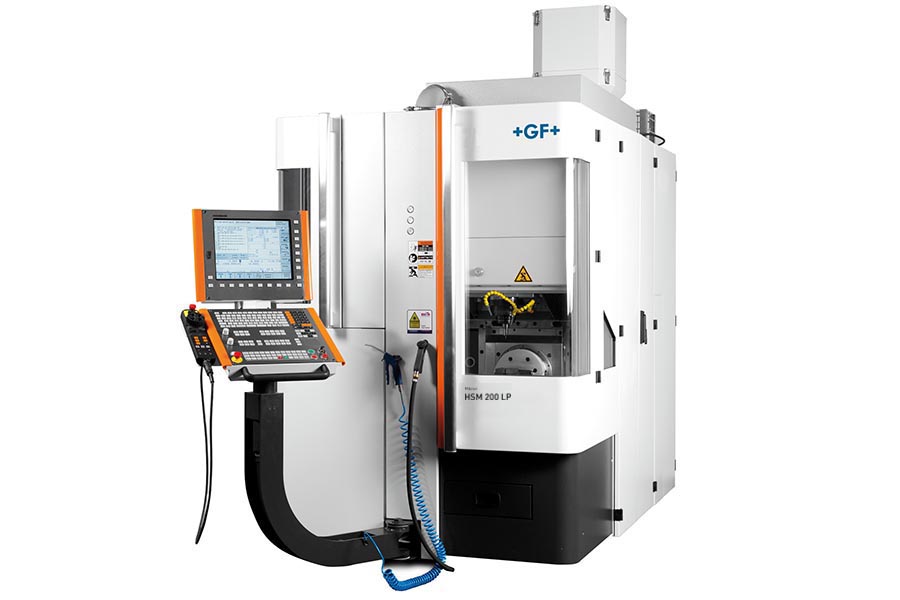

Mikron HSM 200 LPTravel X, Y, Z : 160 x 160 x 200 mm
The Mikron HSM 200 LP series has been designed for the highest precision and surface quality. These vertical high-speed machining centers are therefore offered for both tool and mold-making and the production of high-quality parts. They incorporate the full technical competence of the Swiss machine manufacturer, GF Machining Solutions.
The high-speed reference in the 3-axis range
With the Mikron HSM 200 LP, the engineers from GF Machining Solutions have developed an entirely new kind of machine concept. It puts concentrated power in the smallest possible space.
Concentrated power in the smallest possible space
Compact and powerful for our customers in production
Mikron HSM 200U LPTravel X, Y, Z : 160 x 160 x 200 mm
The high speed milling Mikron HSM 200U LP series has been designed for the highest precision and surface quality. These vertical high-speed machining centers are therefore offered for both tool and mold-making and the production of high-quality parts. They incorporate the full technical competence of the Swiss machine manufacturer, GF Machining Solutions.
The high-speed reference in the 5-axis range.
With the Mikron HSM 200U LP, the engineers from GF Machining Solutions have developed an entirely new kind of machine concept.
It puts concentrated power in the smallest possible space.
Concentrated power in the smallest possible space
Compact and powerful for our customers in production
Mikron MILL S 400Travel X, Y, Z : 500 x 450 x 360 mm
The high speed spindles, the control system, the feed drives, the axis mechanism and the automation of Mikron's MILL S range all have been designed with high speed machining in mind.
High speed milling in compact format.
The Mikron MILL S series leads precision chip removal into a new era. Precise adherence to the specified tool path even under high feed rates ultimately determines the surface quality of concave and convex surfaces. Hence, for many customers, it is the milling texture – or, to be more exact, the lack of it – on the workpiece that is one of the most important performance characteristics of a Mikron machine.

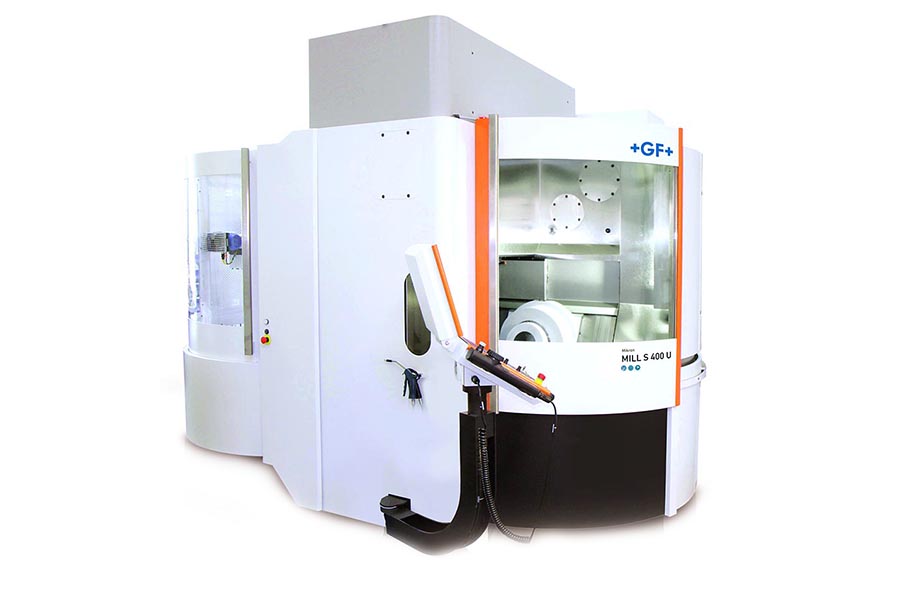

Mikron MILL S 400 UTravel X, Y, Z : 500 x 240 x 360 mm
The high speed spindles, the control system, the feed drives, the axis mechanism and the automation of Mikron's MILL S range all have been designed with high speed machining in mind.
High speed milling in compact format.
The Mikron MILL S series leads precision chip removal into a new era. Precise adherence to the specified tool path even under high feed rates ultimately determines the surface quality of concave and convex surfaces. Hence, for many customers, it is the milling texture – or, to be more exact, the lack of it – on the workpiece that is one of the most important performance characteristics of a Mikron machine.

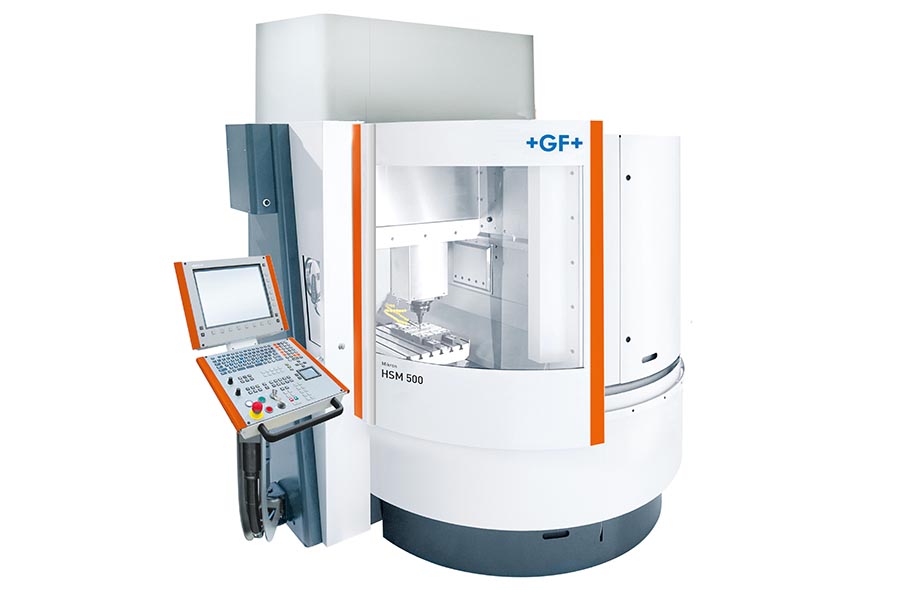

Mikron HSM 500Travel X, Y, Z : 500 x 450 x 350 mm
It is with high speed milling performance in mind that the high performance spindles, the control system, feed drives, the axis mechanism and the automation of Mikron HSM range have always been designed.
High speed milling has never been so easy...
Experience shows that the advantages of high-speed milling can only be realized at cut speeds of more than 40'000 min-1, high feedrates and the best accelerations available – especially in the case of small milling cutter diameters for tool and mould manufacture. These basic requirements call for all the machine components to be fully adapted to HSC technology.

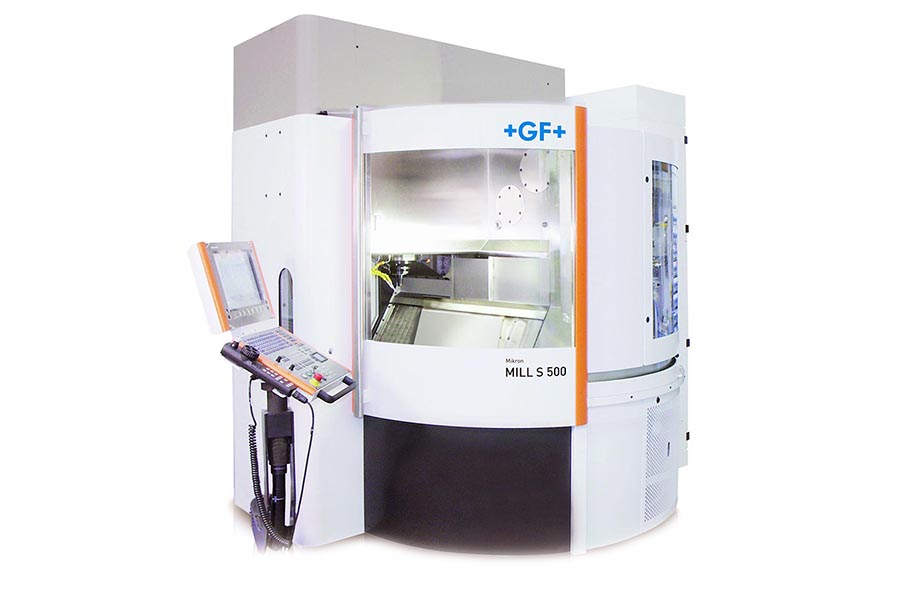

Mikron MILL S 500Travel X, Y, Z : 500 x 450 x 360 mm
The high speed spindles, the control system, the feed drives, the axis mechanism and the automation of Mikron's MILL S range all have been designed with high speed machining in mind.
High speed milling in compact format.
The Mikron MILL S series leads precision chip removal into a new era. Precise adherence to the specified tool path even under high feed rates ultimately determines the surface quality of concave and convex surfaces. Hence, for many customers, it is the milling texture or, to be more exact, the lack of it on the workpiece that is one of the most important performance characteristics of a Mikron machine.

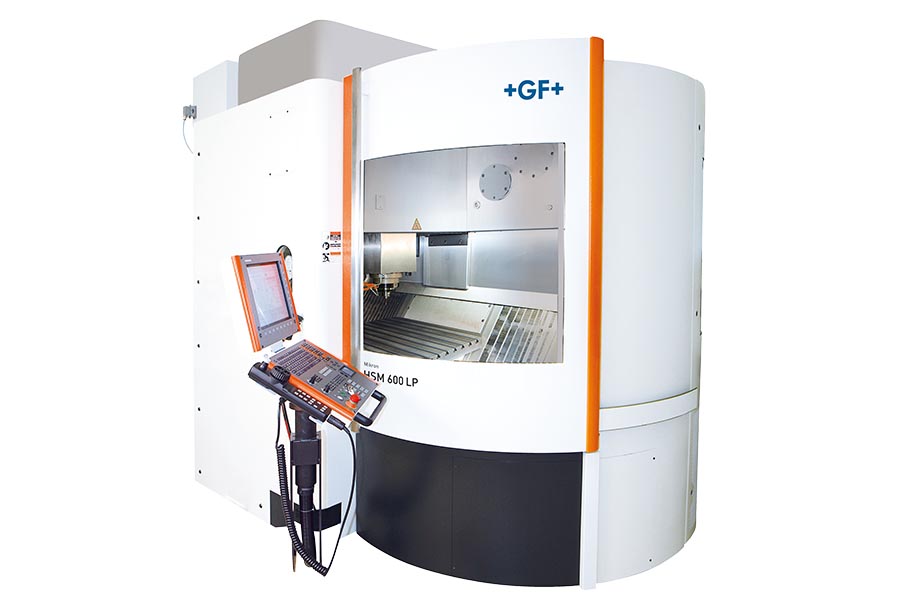

Mikron HSM 600 LPTravel X, Y, Z : 600 x 600 x 500 mm
The high speed spindles, the control system, the feed drives, the axis mechanism and the automation of Mikron's HSM range all have been designed with high speed machining in mind.
Universal approach to mold-making and production
The machines from the Mikron HSM LP series are real high performance machining centers. For optimal absorption of machining and dynamically generated mass energy, the portal design is realized with a polymer concrete base supporting weight optimized and highly stiff cast iron sliding carriages. All axes are powered by direct drives to enable fully simultaneous high-speed machining. The linear axes are supported by linear-roller-guide ways. The result is outstanding product quality and short processing times.
Mikron HSM 600U LPTravel X, Y, Z : 800 x 600 x 500 mm
The high speed spindles, the control system, the feed drives, the axis mechanism and the automation of Mikron's HSM range all have been designed with high speed machining in mind.
Universal approach to mold-making and production
The machines from the Mikron HSM LP series are real high performance machining centers. For optimal absorption of machining and dynamically generated mass energy, the portal design is realized with a polymer concrete base supporting weight optimized and highly stiff cast iron sliding carriages. All axes are powered by direct drives to enable fully simultaneous high-speed machining. The linear axes are supported by linear-roller-guide ways. The result is outstanding product quality and short processing times.

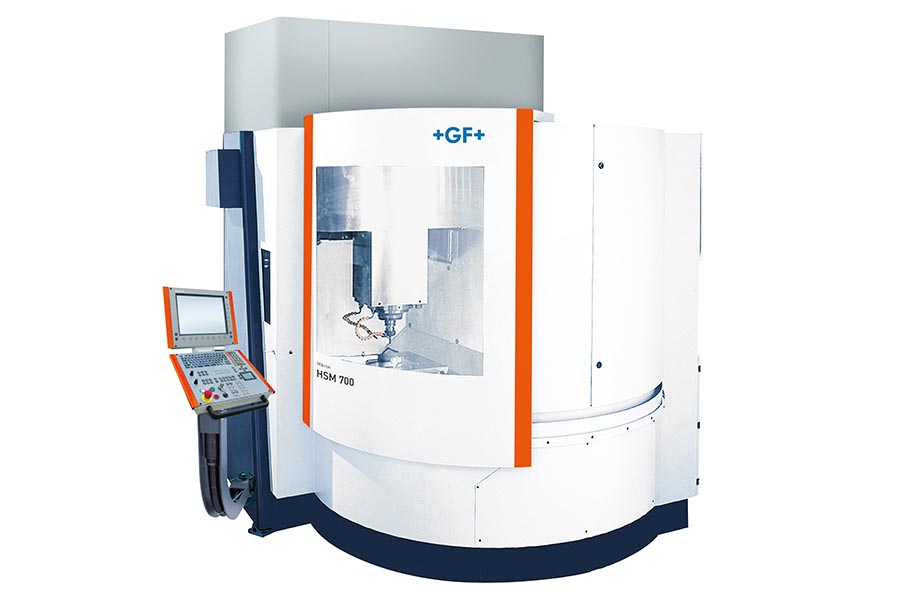

Mikron HSM 700Travel X, Y, Z : 700 x 600 x 500 mm
The high speed spindles, the control system, the feed drives, the axis mechanism and the automation of Mikron's HSM range all have been designed with high speed machining in mind.
High speed milling has never been so easy...
Experience shows that the advantages of high-speed milling can only be realized at cut speeds of more than 40'000 min-1, high feedrates and the best accelerations available – especially in the case of small milling cutter diameters for tool and mould manufacture. These basic requirements call for all the machine components to be fully adapted to HSC technology.

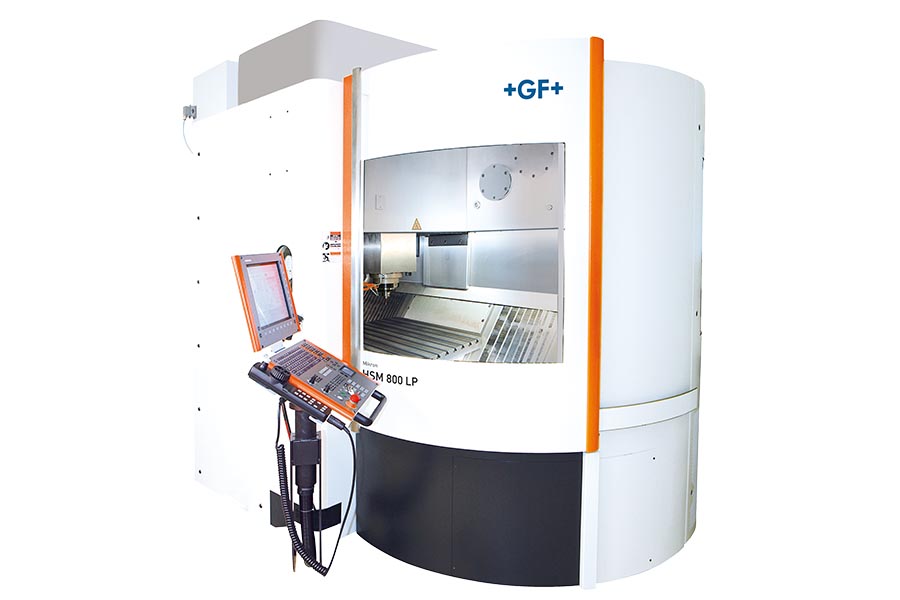

Mikron HSM 800 LPTravel X, Y, Z : 800 x 600 x 500 mm
Engineered and built in Switzerland, GF Machining solutions’ range of high-speed Milling centers boasts the essential structural design, high-speed spindles, high feed rates, axis mechanism and best-in-class acceleration for machining complex three-dimensional surfaces across a wide range of applications.
Universal approach to mold-making and production
The machines from the Mikron HSM LP series are real high performance machining centers. For optimal absorption of machining and dynamically generated mass energy, the portal design is realized with a polymer concrete base supporting weight optimized and highly stiff cast iron sliding carriages. All axes are powered by direct drives to enable fully simultaneous high-speed machining. The linear axes are supported by linear-roller-guide ways. The result is outstanding product quality and short processing times.
