Wire-cutting EDM
Wire EDM machine uses a metallic wire (electrode) to cut a programmed contour in a workpiece. Extrusion dies and blanking punches are very often machined by wire cutting. In the machining area, each discharge creates a crater in the workpiece (material removal) and an impact on the tool (wear of the tool/electrode). The wire can be inclined, thus making it possible to make parts with taper or with different profiles at the top and bottom. The wire is usually made of brass or stratified copper, and is between 0.02 and 0.33 mm diameter.
Open up new opportunities for ultra-precise machining of miniaturized components in various fields of technology, including aerospace, defense, medical instruments, semiconductor that may require wire diameters down to 0.02 mm..

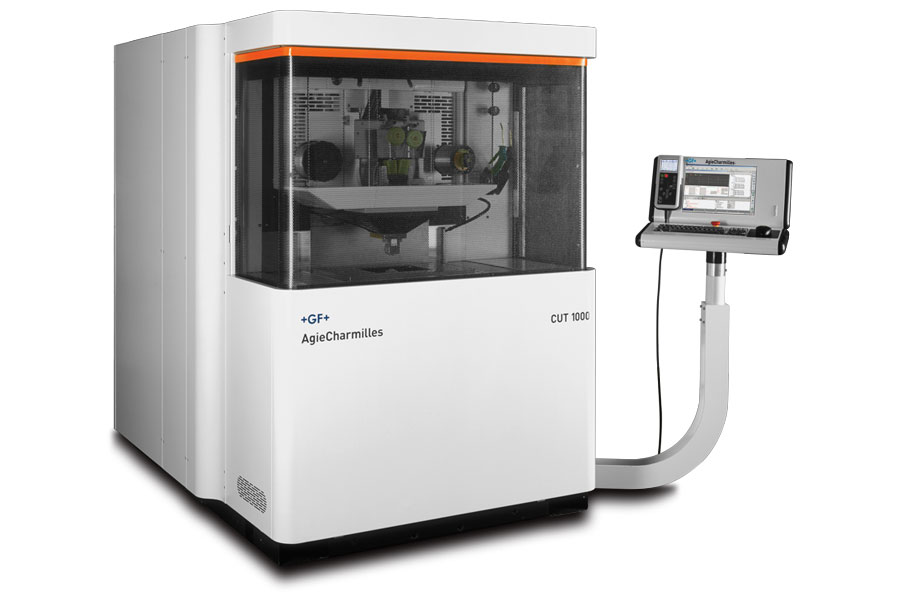

AgieCharmilles CUT 1000Travel X, Y, Z : 220 x 160 x 100 mm
GF Machining Solutions’ new AgieCharmilles CUT 1000, specifically designed to meet these demands, offers unique features in terms of precision and productivity, and perfect predictability and repeatability of machining results. This wire cut machine is a benchmark in micro erosion.
AgieCharmilles CUT 1000 designed for outstanding accuracy
Due to an exclusive machine design concept, the AgieCharmilles CUT 1000 meets highly demanding requirements in terms of positioning accuracy, shape and detail accuracy. These results are possible thanks to the development of an innovative machine tool design based on a monoblock framework with separated X and Y axes, and through the static and dynamic analysis of the behavior of the machine tool with the Finite Element Method.

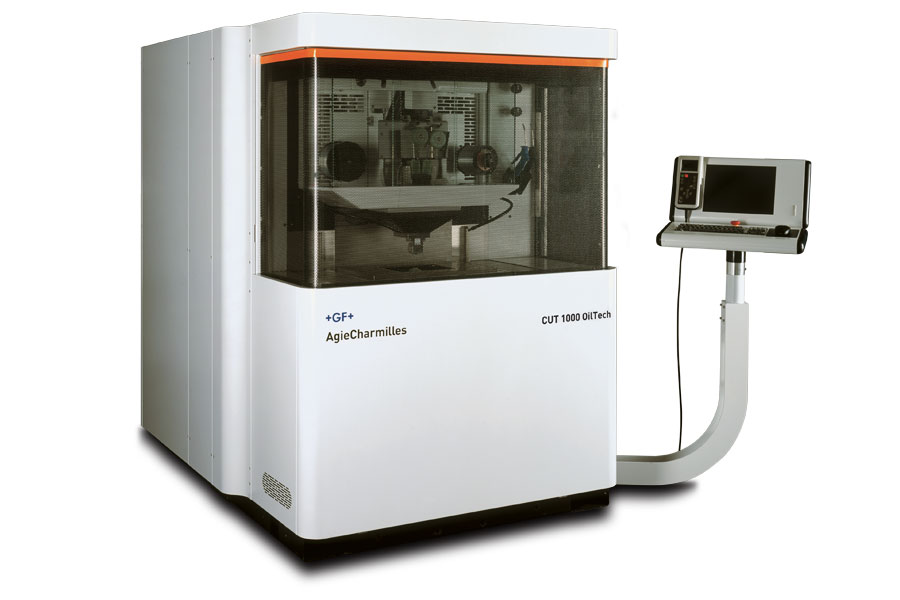

AgieCharmilles CUT 1000 OilTechTravel X, Y, Z : 220 x 160 x 100 mm
GF Machining Solutions’ new AgieCharmilles CUT 1000 OilTech, specifically designed to meet these demands, offers unique features in terms of precision and productivity, and perfect predictability and repeatability of machining results. This wire cut machine is a benchmark in micro erosion.
AgieCharmilles CUT 1000 OilTech designed for outstanding accuracy
Due to an exclusive machine design concept, the AgieCharmilles CUT 1000 OilTech meets highly demanding requirements in terms of positioning accuracy, shape and detail accuracy. These results are possible thanks to the development of an innovative machine tool design based on a monoblock framework with separated X and Y axes, and through the static and dynamic analysis of the behavior of the machine tool with the Finite Element Method.

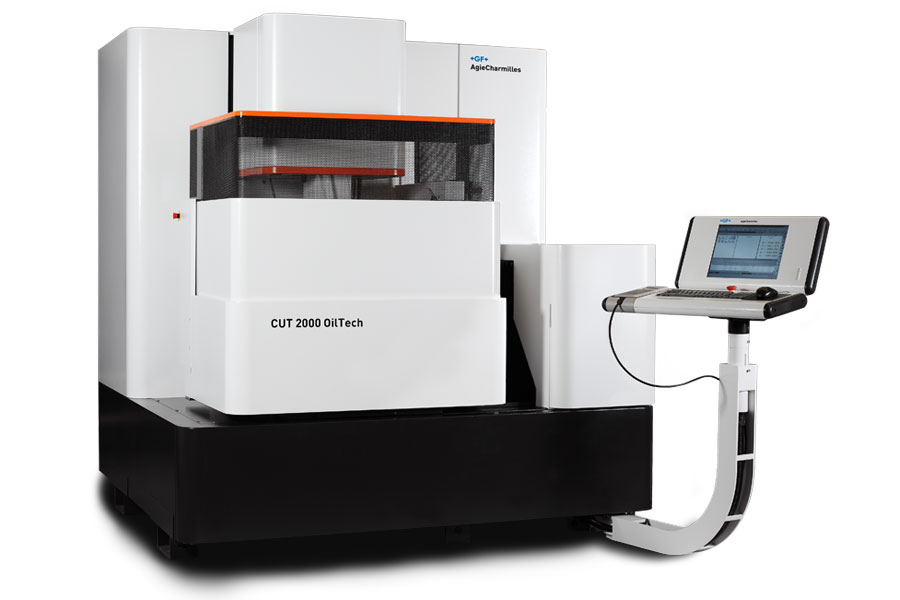

AgieCharmilles CUT 2000 OilTechTravel X, Y, Z : 350 x 250 x 256 mm
The machining precision is the result of a set of technical choices, such as the mechanical concept, the machining process, and wire guidance. Each element composing the AgieCharmilles CUT 2000 OilTech has been thought through and implemented in the smallest details, with the sole objective of ensuring high precision for the entire lifetime of the machine.
Great flexibility in the choice of wire diameter
One system of wire guides permits the use of all wire diameters from 0.05 to 0.30 mm (0.002 – 0.012 in). This exclusive AgieCharmilles CUT 2000 OilTech characteristic is not due to chance. The concept of all components involved in the movement of the wire is based on the long experience of GF Machining Solutions engineers in the service of high precision and flexibility of use. No additional cost is incurred when another wire diameter is necessary for manufacturing a new tool. Use of another wire diameter does not require any additional adjustment.

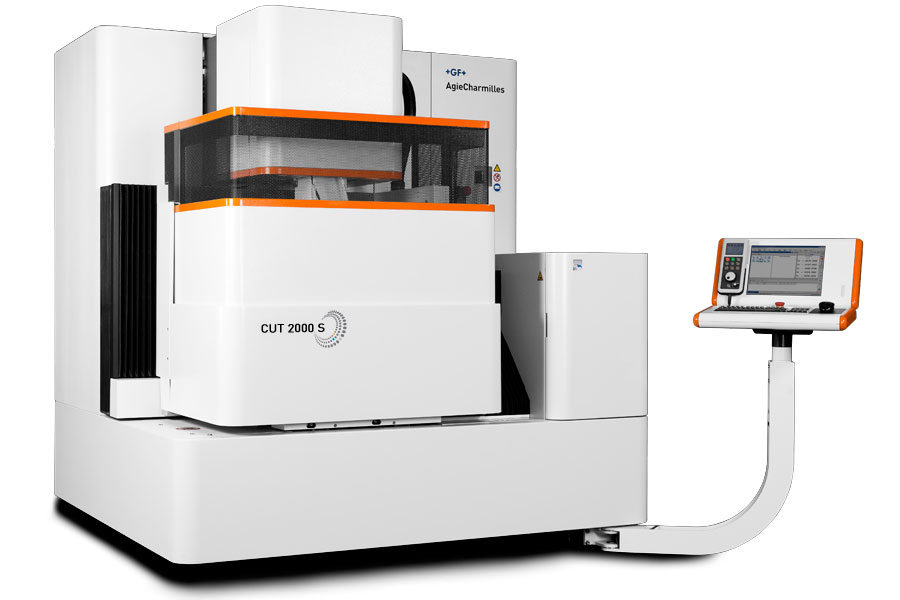

AgieCharmilles CUT 2000 STravel X, Y, Z : 350 x 250 x 256 mm
Swiss production: The ultra-modern wire EDM assembly line meets the criteria for Swiss quality. Each individually calibrated machine is delivered with a certificate of quality attesting to its conformity with the requirements of all GF Machining Solutions machines. The measurement and regulating data are stored in the machine and can be consulted or called up at any time.
High precision and unequaled productivity
The machining precision is the result of a set of technical choices, such as the mechanical concept, the machining process, and wire guidance. Each element of the AgieCharmilles CUT 2000 S has been thought through and implemented in the smallest details, with the sole objective of ensuring high precision for the entire lifetime of the machine.
