Wire-cutting EDM

Wire EDM machine uses a metallic wire (electrode) to cut a programmed contour in a workpiece. Extrusion dies and blanking punches are very often machined by wire cutting. In the machining area, each discharge creates a crater in the workpiece (material removal) and an impact on the tool (wear of the tool/electrode). The wire can be inclined, thus making it possible to make parts with taper or with different profiles at the top and bottom. The wire is usually made of brass or stratified copper, and is between 0.02 and 0.33 mm diameter.

General purpose

High level of flexibility and low running cost, the ideal machines for any EDM work shop

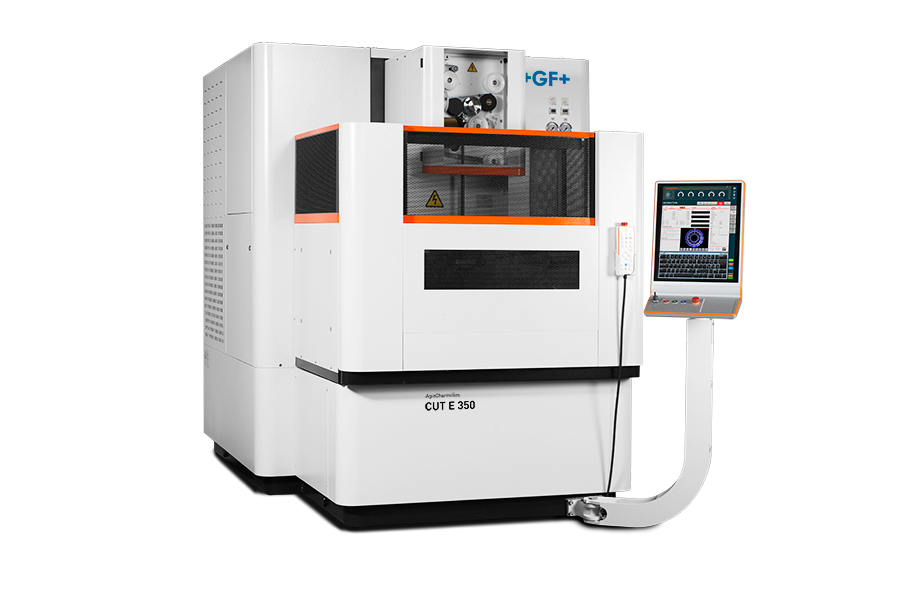

AgieCharmilles CUT E 350Travel X, Y, Z : 350 x 250 x 250 mm

The AgieCharmilles CUT E 350/AgieCharmilles CUT E 600 range puts efficiency at the touch of your finger with a smart, easy-to-use human-machine interface (HMI) and onboard technologies that streamline your job setup, improve your cutting speed, improve your surface finish, protect your valuable workpieces, and ensure your process robustness.

New design advances your efficiency
Power your performance:
Your business performance is powered by machine performance, and our Intelligent Power Generator (IPG) boasts wide range expert technologies help you achieve the surface quality and precision your discerning customers demand.
Accelerate your productivity:
Time saved is money earned. Onboard speed technology package puts you on the fast track to provide excellent performance at an affordable price.

More info....

AgieCharmilles CUT E 600Travel X, Y, Z : 600 x 400 x 350 mm

The AgieCharmilles CUT E 350/AgieCharmilles CUT E 600 range puts efficiency at the touch of your finger with a smart, easy-to-use human-machine interface (HMI) and onboard technologies that streamline your job setup, improve your cutting speed, improve your surface finish, protect your valuable workpieces, and ensure your process robustness.

New design advances your efficiency
Power your performance:
Your business performance is powered by machine performance, and our Intelligent Power Generator (IPG) boasts wide range expert technologies help you achieve the surface quality and precision your discerning customers demand.
Accelerate your productivity:
Time saved is money earned. Onboard speed technology package puts you on the fast track to provide excellent performance at an affordable price.

More info....

AgieCharmilles CUT 20 PTravel X, Y, Z : 350 x 250 x 250 mm

The AgieCharmilles CUT 20 P, an EDM wire cut unit, is a very interesting machine offering outstanding features and excellent cutting performances. Equipped with joint technology from GF Machining Solutions it positions itself as the ultimate in price/performance WEDM machine in the market place. It handles wire diameters from 0.15 to 0.30 mm (0.006 to 0.012 in) with ease and is highly fl exible to satisfy most of the requirements in the fi eld of general engineering and standard stamping.

Speed technologies
The AgieCharmilles CUT 20 P has on board technologies that allow a unique speed cut. These technologies optimise main, 2nd and 3rd fi nishing cuts, to attain the most common values of surface roughness, like Ra 0.60 μm (24 μin) and Ra 0.35 μm (14 μin) to be achieved in a minimum of time. These high speed technologies, make the AgieCharmilles CUT 20 P a very powerful competitive production unit.

More info....

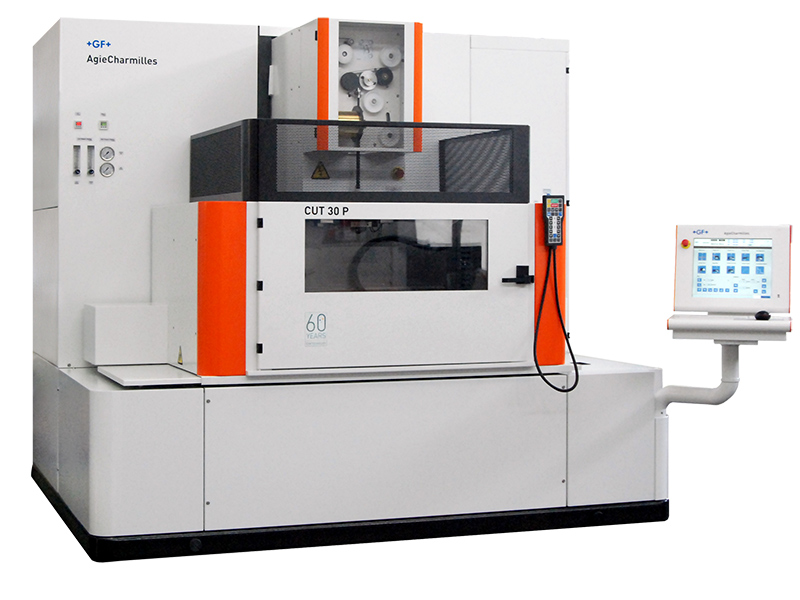

AgieCharmilles CUT 30 PTravel X, Y, Z : 600 x 400 x 350 mm

The AgieCharmilles CUT 30 P, an EDM wire cutting unit, is a very interesting machine offering outstanding features and excellent cutting performances. Equipped with joint technology from GF Machining Solutions it positions itself as the ultimate in price/performance WEDM machine in the market place. It handles wire diameters from 0.15 to 0.30 mm (0.006 to 0.012 in) with ease and is highly flexible to satisfy most of the requirements in the fi eld of general engineering and standard stamping.

The solution for standard parts and general engineering
The AgieCharmilles CUT 30 P has on board technologies that allow a unique speed cut. These technologies optimise main, 2nd and 3rd fi nishing cuts, to attain the most common values of surface roughness, like Ra 0.60 μm (24 μin) and Ra 0.35 μm (14 μin) to be achieved in a minimum of time. These high speed technologies, make the AgieCharmilles CUT 30 P a very powerful competitive production unit.

More info....
