Die-sinking EDM

GF Machining Solutions is revolutionizing die-sinking EDM with features like FTC — the world’s fastest tool changer — and IQ technology to dramatically reduce electrode wear. All of our die-sinking systems offer fast removal and deliver mirror finishes of Ra 0.2 µm (8 µin)with pulse duration as short as 50 nanoseconds.

Micro machining

To satisfy demanding applications in connectors, as well as in the areas of medicine and watch industry, where components now need to be miniaturized.

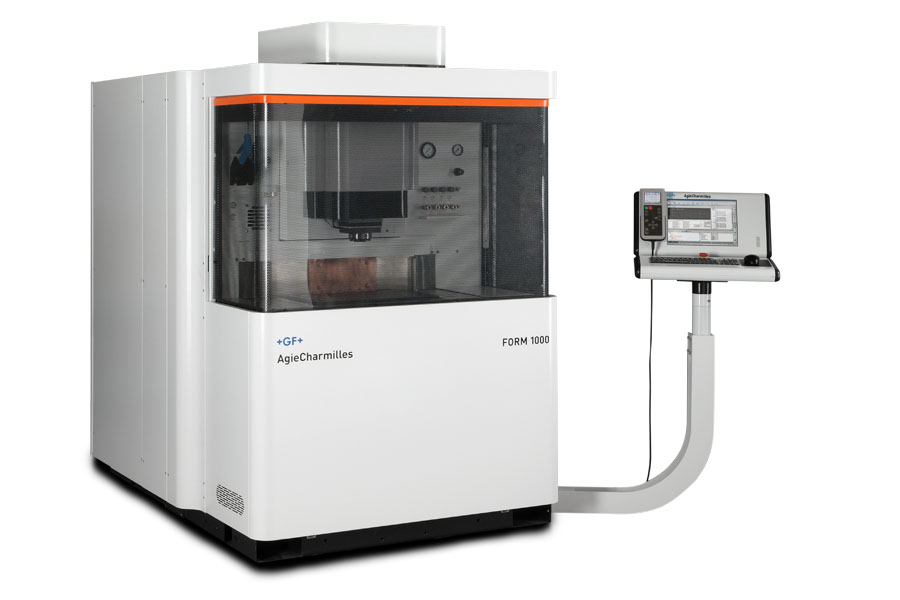

FORM 1000

The AgieCharmilles FORM 1000 is equipped with a fixed table. The work tank and the dielectric level are automatically adjusted to the workpiece height, which allows comfortable access to the work zone for the operator. The machine has a standard granite table which, located at a lower level, offering the advantage of a high distance between table and quill for standard workpieces and electrode dimensions.

Great flexibility for standard and micro applications
The AgieCharmilles FORM 1000 is equipped with a powerful control, including new features tailored to the needs and applications in micro erosion. The direct import of data of the workpiece and the electrode, a system of integrated management of work and mode of data entry is identical to that of a PC are other prominent features of the Vision 5 command, which allows you to perfectly match the needs of modern workshops.

More info....

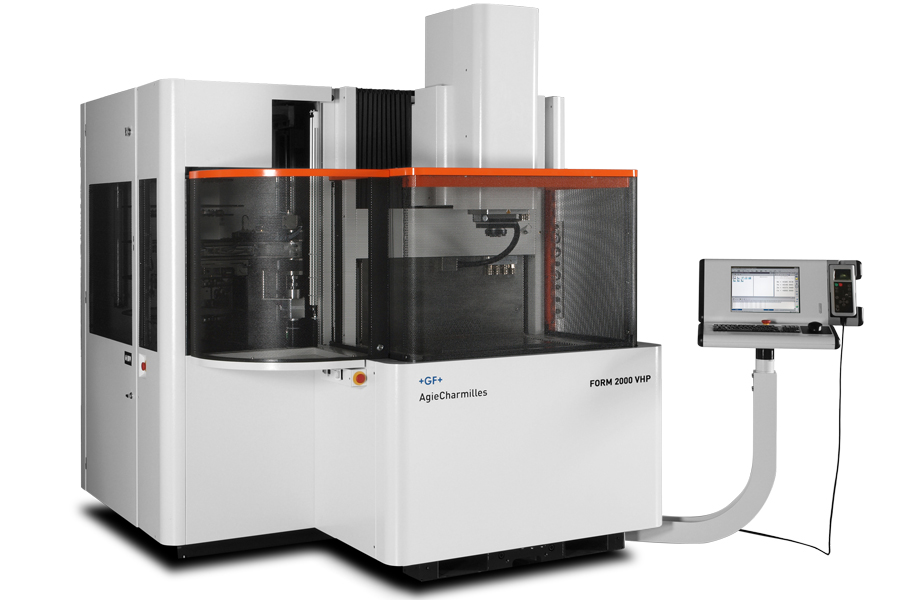

AgieCharmilles FORM 2000 VHP

The EDM die-sinking machines AgieCharmilles FORM 2000 HP have a unique mechanical structure. The modern solution consists of a machine column made of polymer with a sophisticated and unique system which compensates temperature variations.

Unique concept for highest precision
The EDM die-sinking machines AgieCharmilles FORM 2000 HP have a unique mechanical structure. The modern solution consists of a machine column made of polymer with a sophisticated and unique system which compensates temperature variations. Temperature stabilization is achieved by cooling the X, Y and Z-glass scales and also the Z axis ball screw with stable temperature dielectric. A fixed table with an automatically lowerable work tank, allowing easy loading of heavy work pieces, as well as a modular automation system

More info....

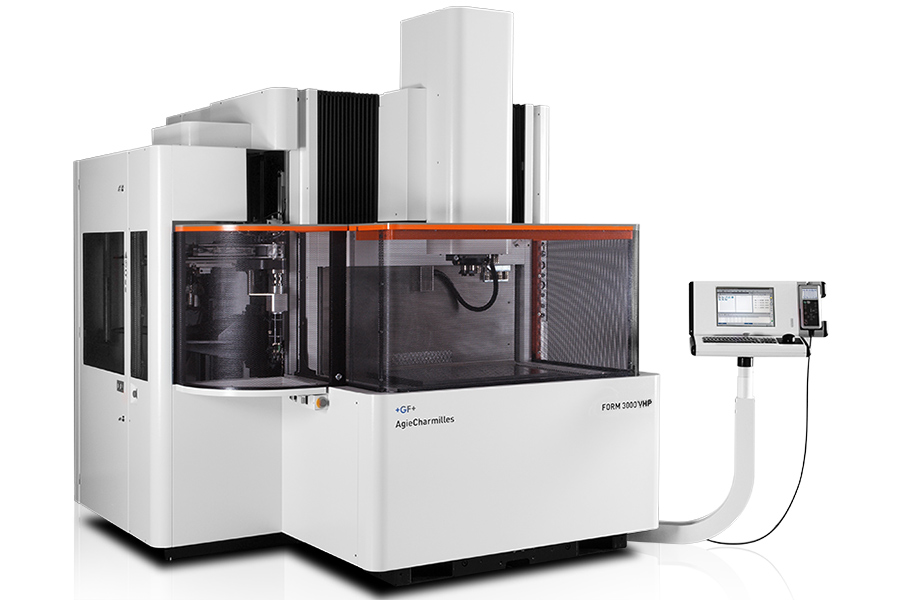

AgieCharmilles FORM 3000 VHP

The EDM die-sinking machines AgieCharmilles FORM 3000 HP have a unique mechanical structure. The modern solution consists of a machine column made of polymer with a sophisticated and unique system which compensates temperature variations.

Unique concept for highest precision
The EDM die-sinking machines AgieCharmilles FORM 3000 HP have a unique mechanical structure. The modern solution consists of a machine column made of polymer with a sophisticated and unique system which compensates temperature variations. Temperature stabilization is achieved by cooling the X, Y and Z-glass scales and also the Z axis ball screw with stable temperature dielectric. A fixed table with an automatically lowerable work tank, allowing easy loading of heavy work pieces, as well as a modular automation system

More info....
