Die-sinking EDM

GF Machining Solutions is revolutionizing die-sinking EDM with features like FTC — the world’s fastest tool changer — and IQ technology to dramatically reduce electrode wear. All of our die-sinking systems offer fast removal and deliver mirror finishes of Ra 0.2 µm (8 µin)with pulse duration as short as 50 nanoseconds.

Cost effective

The FORM 20/FORM 30 die-sinking EDM machines offer success-triggering features and excellent performance. Equipped with GF Machining Solutions’ Swiss-made generator, the FORM 20 / FORM 30 are the market’s ultimate in EDM price/performance.

AgieCharmilles FORM 20

The AgieCharmilles FORM 20 / FORM 30 die-sinking EDM machines offer success-triggering features and excellent performance. Equipped with GF Machining Solutions’ Swiss-made generator, the AgieCharmilles FORM 20/FORM 30 are the market’s ultimate in EDM price/performance.

Swiss top technology with best price-performance ratio
The AgieCharmilles FORM 20 and AgieCharmilles FORM 30 are available with the optional GammaTEC technology to optimize machining performance for shiny surface finishing on big workpiece surfaces. Rapid and easy changing from this configuration to standard EDM gives you the advantage of having two machines in one.Notably, the Swiss-made generator and all the available features of the standard configuration make the AgieCharmilles FORM20/FORM 30 comprehensive partners in your production chain

Integrated Rotary Tool Changer

ncrease your productivity, thanks to the flexibility
It is common to have various kinds of machining jobs but, in some cases, this can be problematic when starting machining. Whether the job at hand requires electrodes of the same shape or many electrodes of different shapes and sizes, GF Machining Solutions answers your needs with the AgieCharmilles FORM 20/30 series equipped with the integrated Rotary Tool Changer (iRTC). From simple to complex machining, the iRTC provides the necessary tool for productivity.

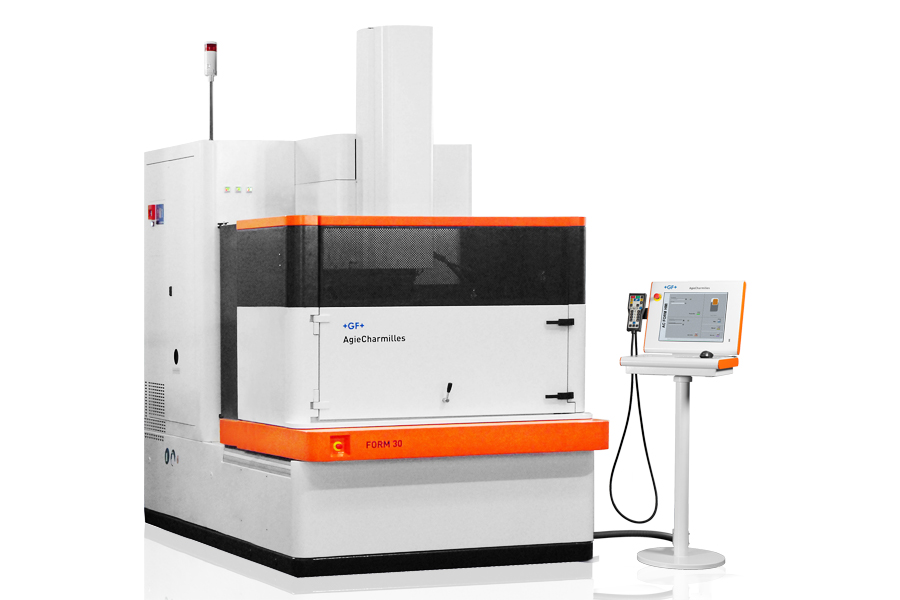

AgieCharmilles FORM 30

The new AgieCharmilles FORM 30 is the most compact universal electrical discharge machine in the standard level segment. The new, modern machine design creates homogeneity with the entire GF Machining Solutions product range.

The most cost-efficient EDM die sinker for general mold and die applications
The AgieCharmilles FORM 30 are equipped with one of the most modern generators in the world for die-sinking EDM. Integrated into the generator is quality-boosting and cost-saving intelligence. The EDM process is continuously optimized with every impulse, drastically reducing electrode wear on even the finest finishes. Process control takes a fraction of a second and produces an extremely homogeneous surface finish.The high-power generator has maximum output of 80 A on AgieCharmilles FORM 20 and 140 A on AgieCharmilles FORM 30.

Integrated Rotary Tool Changer

Increase your productivity, thanks to the flexibility
It is common to have various kinds of machining jobs but, in some cases, this can be problematic when starting machining. Whether the job at hand requires electrodes of the same shape or many electrodes of different shapes and sizes, GF Machining Solutions answers your needs with the AgieCharmilles FORM 20/30 series equipped with the integrated Rotary Tool Changer (iRTC). From simple to complex machining, the iRTC provides the necessary tool for productivity.
