Products
Trochoid Pumps
Model 1 (Small capacity)
1A
Specifications
| Model / Item | Theoretical Displacement (cm3/rev) |
Theoretical Discharge (L/min) |
Max. Pressure (MPa) |
Max. Revolution (min-1) |
Approx. Weight (kg) |
|
|---|---|---|---|---|---|---|
| 1500min-1 | 1800min-1 | |||||
| TOP-10A | 0.8 | 1.2 | 1.4 | 0.5 | 3,000 | 0.5 |
| TOP-11A | 1.5 | 2.2 | 2.7 | 0.5 | 2,000 | 0.5 |
| TOP-12A | 2.5 | 3.7 | 4.5 | 0.5 | 1,800 | 0.6 |
| TOP-13A | 4.5 | 6.7 | 8.1 | 0.5 | 1,800 | 0.8 |

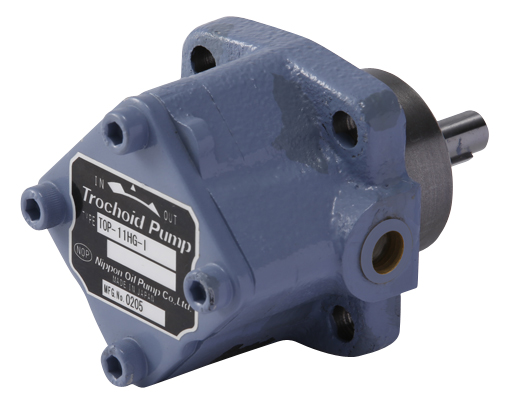

1HG
Specifications
| Model / Item | Theoretical Displacement (cm3/rev) |
Theoretical Discharge (L/mi)n | Max. Pressure (MPa) |
Max. Revolution (min-1) |
Approx. Weight (kg) |
|
|---|---|---|---|---|---|---|
| 1500min-1 | 1800min-1 | |||||
| TOP-11HG | 1.5 | 2.2 | 2.7 | 2.5 | 3,000 | 1.4 |
| TOP-12HG | 2.5 | 3.7 | 4.5 | 2.5 | 2,500 | 1.5 |

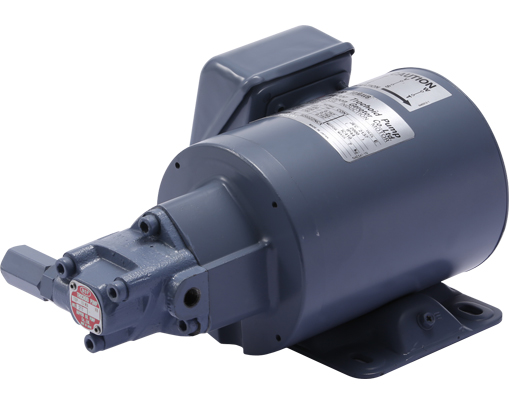

1ME-1MA
Required Power of Trochoid Pump
| Model / Item | 1500min-1 (50Hz) | 1800min-1 (60Hz) | ||||||
|---|---|---|---|---|---|---|---|---|
| Theoretical Discharge (L/min) |
Max.Pressure for Motor Output (MPa) |
Theoretical Discharge (L/min) |
Max.Pressure for Motor Output (MPa) |
|||||
| 75W | 100W | 200W | 75W | 100W | 200W | |||
| TOP-10MA | 1.2 | 0.5 | 0.5 | 0.5 | 1.4 | 0.4 | 0.5 | 0.5 |
| TOP-11MA | 2.2 | 0.5 | 0.5 | 0.5 | 2.7 | 0.3 | 0.5 | 0.5 |
| TOP-12MA | 3.7 | 0.2 | 0.5 | 0.5 | 4.5 | 0.1 | 0.3 | 0.5 |
| TOP-13MA | 6.7 | - | 0.2 | 0.5 | 8.1 | - | 0.1 | 0.5 |
For More information about above products Please Click Here
