Trochoid Pumps

Model 2 (Small and intermediate capacity)

2HB

Specifications

Model / Item Theoretical
Displacement
(cm3/rev)		 Theoretical Discharge
(L/min)		 Max.
Pressure
(MPa)		 Max.
Revolution
(min-1)		 Approx.
Weight
(kg)
1500min-1 1800min-1
TOP-203HB 2.8 4.2 5.0 3.0 3,000 3.5
TOP-204HB 4 6.0 7.2 3.0 3,000 3.6
TOP-206HB 6 9.0 10.8 2.5 2,500 3.8
TOP-208HB 8 12.0 14.4 2.5 2,500 4.0
TOP-210HB 10 15.0 18.0 2.5 2,500 4.1
TOP-212HB 12 18.0 21.6 2.0 2,000 4.3
TOP-216HB 16 24.0 28.8 1.5 1,800 4.6
TOP-220HB 20 30.0 36.0 1.2 1,800 5.0

More info....

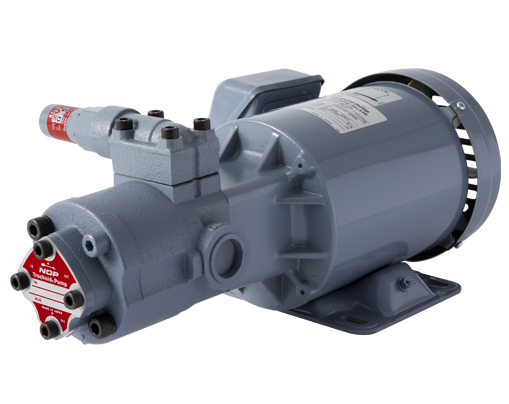

2MY-2HBM

Required Power of Trochoid Pump

Model / Item 1500min-1 (50Hz) 1800min-1 (60Hz)
Theoretical
Discharge
(L/min)		 Max. Pressure for Motor Output
(MPa)		 Theoretical
Discharge
L/min		 Max. Pressure for Motor Output
(MPa)
200W 400W 750W 1500W 200W 400W 750W 1500W
TOP-203HBM 4.2 1.7 3.0 3.0 3.0 5.0 1.3 3.0 3.0 3.0
TOP-204HBM 6.0 1.2 3.0 3.0 3.0 7.2 0.9 2.3 3.0 3.0
TOP-206HBM 9.0 0.7 1.8 2.5 2.5 10.8 0.5 1.4 2.5 2.5
TOP-208HBM 12.0 0.5 1.3 2.5 2.5 14.4 0.3 1.0 2.3 2.5
TOP-210HBM 15.0 0.4 1.1 2.5 2.5 18.0 0.3 0.9 2.0 2.5
TOP-212HBM 18.0 0.3 0.9 2.0 2.0 21.6 - 0.7 1.6 2.0
TOP-216HBM 24.0 0.2 0.7 1.5 1.5 28.8 - 0.5 1.2 1.5
TOP-220HBM 30.0 - 0.4 1.2 1.2 36.0 - 0.3 0.9 1.2

More info....

2MY-2HWM

Required Power of Trochoid Pump

Model / Item 1500min-1 (50Hz) 1800min-1 (60Hz)
Theoretical
Discharge
(L/min)		 Max. Pressure for Motor Output
(MPa)		 Theoretical
Discharge
(L/min)		 Max. Pressure for Motor Output
(MPa)
200W 400W 750W 1500W 200W 400W 750W 1500W
TOP-204HWM 6.0 1.2 2.0 2.0 2.0 7.2 1.0 2.0 2.0 2.0
TOP-206HWM 9.0 0.8 1.8 2.0 2.0 10.8 0.6 1.6 2.0 2.0
TOP-208HWM 12.0 0.6 1.4 2.0 2.0 14.4 0.4 1.2 2.0 2.0
TOP-210HWM 15.0 0.4 1.2 2.0 2.0 18.0 0.3 1.0 2.0 2.0
TOP-212HWM 18.0 0.3 1.0 2.0 2.0 21.6 - 0.8 1.6 2.0
TOP-216HWM 24.0 0.2 0.8 1.5 2.0 28.8 - 0.6 1.2 2.0
TOP-220HWM 30.0 - 0.6 1.2 1.5 36.0 - 0.5 1.0 1.5

More info....




For More information about above products Please Click Here
