Vortex
An All-in-one, High-to-medium Pressure Coolant Pump

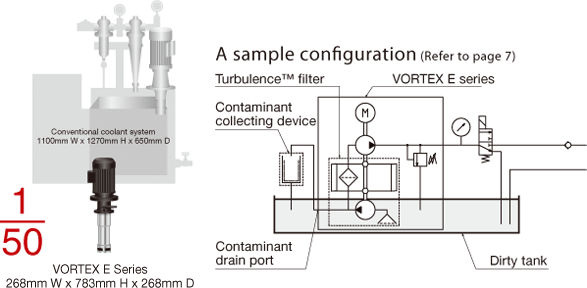

Vortex unit. No line and suction filters are required. The use of a Vortex unit reduces the required space to about 1/50th by volume of that occupied by a conventional coolant system. The saved space expands the available plant space, resulting in a higher production efficiency.
- Maximum operating pressure: 7.0MPa
- Maximum discharge: 18 liters/min.
- No suction filter is required.
- No line filter is required.
- No clean tank is required.
- No transfer pump is required on the dirty-tank end.
- No plumbing is required to interconnect various components.
Automatic Self-cleaning
Turbulence™ Filter

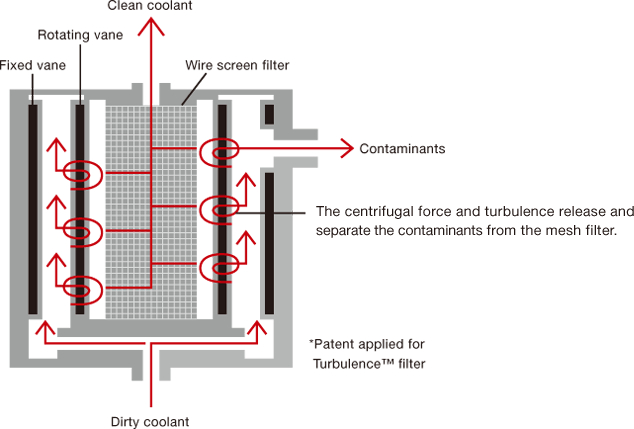

Our special Turbulence™ design generates turbulence. The combined action of the turbulence and centrifugal force washes away chips from the filter automatically. The result is a maintenance-free unit with a stable high pressure and large flow rate. *Chips larger than 20μm in size removed (when using aqueous solution containing 2% or more water-soluble coolant fluid).
Two Types of Pump to Choose
You have two options — the powerful plunger pump and the high-efficiency Trochoid™ pump — depending on your application.
Compatible types of fluid
- Aqueous solution containing 2% or more water-soluble coolant fluid
Water-insoluble coolant fluid of 15mm2/s or less viscosity* - Not for lubricant oil or fuel oil
- Not for clear water, purified water, water solutions without rust-preventive property, viscous fluids, corrosive liquid, solvents, and oils
- *EP is limited to use with water-soluble coolants.
Relief valve is built into the unit

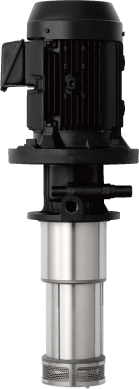

Plunger Pump

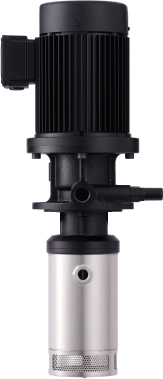

Trochoid™ Pump

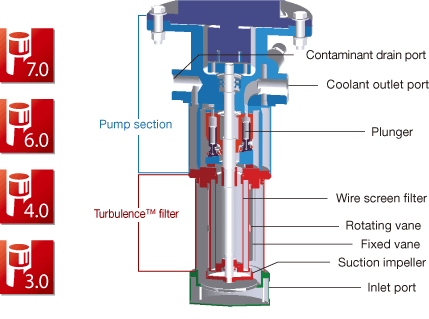

Plunger-type, All-in-one High-pressure Pump
Specifications
| Motor capacity |
Type | Pump capacity (ℓ/min) |
Maximum pressure (MPa) |
L | H | M | ΦD | θ° | TB | Approx. weight (kg) |
|
|---|---|---|---|---|---|---|---|---|---|---|---|
| YTH2200A1-P008EVD70C | 2.2kw | AC standard | 12.0/14.4 | 7.0 | 732.8 | 412.5 | 290.5 | 198 | 45 | 141 | 43 |
| YTH2200A1-P010EVD70C | 15.0/18.0 | ||||||||||
| YTH2200A1-P016EVD30C | 24.0/28.8 | 3.0 | |||||||||
| YTH2200A*- P008EVD70C | AC with CE marking | 12.0/14.4 | 7.0 | 783.3 | 463 | 341 | 202 | 45 | 172 | 56 | |
| YTH2200A*- P010EVD70C | 15.0/18.0 | ||||||||||
| YTH2200A*- P016EVD30C | 24.0/28.8 | 3.0 |

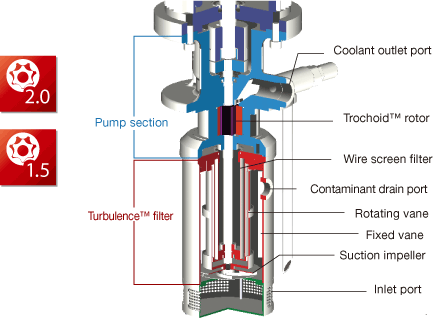

Trochoid™-type, All-in-one Medium-pressure Pump
Specifications
| Motor capacity |
Type | Pump capacity (ℓ/min) |
Maximum pressure (MPa) |
L | B | C | W | Q | H | M | ΦD | θ° | TB | Approx. weight (kg) |
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| YTH750A1-T208EVD* | 0.75kW | AC standard | 12.0/14.4 | 2.0 | 618.3 | 274.8 | 93.5 | 214.8 | 20 | 343.5 | 233 | 170 | 30 | 140 | 30 |
| YTH750A2-T208EVD* | AC with CE marking |
668.3 | 393.5 | 283 | 170 | 15 | 134 | 35 | |||||||
| YTH750D1-T208EVD* | Brushless DC | 630.3 | 335.5 | 225 | 172 | 0 | 143.5 | 25 | |||||||
| YTH1500A1-T216EVD* | 1.5kW | AC standard | 24.0/28.8 | 2.0 | 680.3 | 294.8 | 113.5 | 234.8 | 40 | 385.5 | 275 | 198 | 45 | 140 | 34 |
| YTH1500A2-T216EVD* | AC with CE marking |
717.3 | 422.5 | 312 | 202 | 0 | 166 | 42 | |||||||
| YTH1500D1-T216EVD* | Brushless DC | 665.3 | 370.5 | 260 | 172 | 0 | 143.5 | 28 |
