Vortex
World’s First — All-in-one, Medium-pressure Coolant Pump
This is a basic Vortex model consolidating a large coolant system into one unit. Simply replace a conventional medium-pressure pump with a C series pump to reduce the occupied space to 1/100th by volume. The plant space is in effect greatly expanded and production efficiency improves.
- Maximum operating pressure: 2.0MPa
- Maximum discharge: 28.8 liters/min.
- No suction filter is required.
- No clean tank is required.
- No transfer pump is required on the dirty-tank end.
- No plumbing is required to interconnect various components.

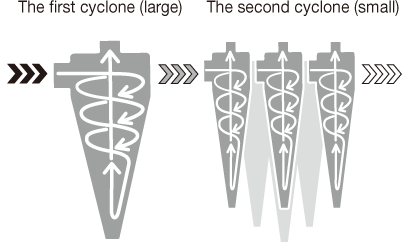

Double-cyclone Filter
A proprietary double-cyclone filtering system removes chips*. The first and second cyclones remove relatively large and fine chips, respectively. The line-filter cleaning cycle is extended by 24 times.
*Chips larger than 20μm in size removed (when using aqueous solution containing 2% or more water-soluble coolant fluid).
Cyclone-type, All-in-one High-pressure Pump
Specifications
| Motor capacity |
Type | Pump capacity (ℓ/min) |
Maximum pressure (MPa) |
L | B | C | W | Q | H | M | ΦD | θ° | TB | Approx. weight (kg) |
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| YTH750A1- T208CVD* |
0.75kW | AC standard | 12.0/14.4 | 2.0 | 579.2 | 235.7 | 206.7 | 175.7 | 20 | 343.5 | 233 | 170 | 30 | 140 | 30 |
| YTH750A2- T208CVD* |
AC with CE marketing |
629.2 | 393.5 | 283 | 170 | 15 | 134 | 35 | |||||||
| YTH1500A1- T216CVD* |
1.5kW | AC standard | 24.0/28.8 | 2.0 | 641.2 | 255.7 | 226.7 | 195.7 | 40 | 385.5 | 275 | 198 | 45 | 140 | 34 |
| YTH1500A2- T216CVD* |
AC with CE marketing |
678.2 | 422.5 | 312 | 202 | 0 | 166 | 42 |
